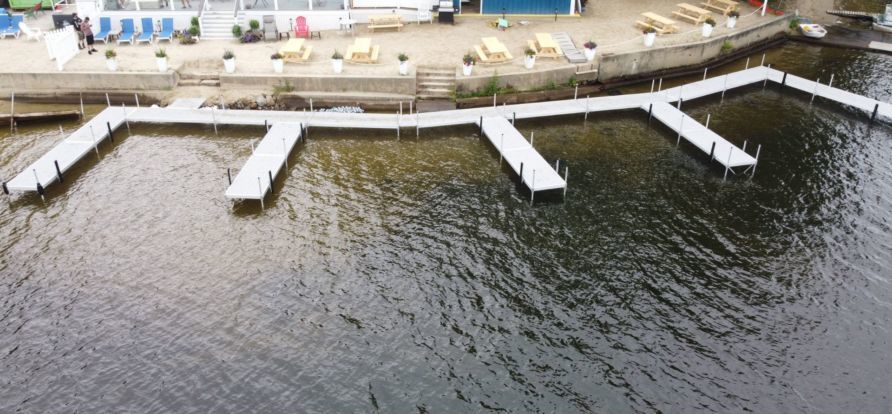

A ten-slip stationary aluminum dock connects boaters with a waterfront restaurant. Standard dock sections and custom gussets bring the layout into alignment with the shoreline.
Standard FWM aluminum sections form the perimeter and fingers of the dock.
10 slipsBoat access to the beach club
FWM aluminumStationary dock system
Custom gussetsConnections that follow the shoreline
The project
A dock that follows the shoreline.
The waterfront is the starting point. Here, the dock provides a place for boaters to arrive for dinner while following the shape of the shore.
The perimeter uses 4′ × 12′ aluminum-frame sections with gray ThruFlow decking. The fingers use 4′ × 10′ aluminum sections to create the individual slips.
02
Custom gussets connect the geometry.
Custom gussets were created to let the dock run parallel to the shoreline. This is a practical example of standard modular components working with a site-specific fabricated detail.
03
Access and protection complete the system.
The project includes a transition ramp, adjustable vertical bumpers, corner bumpers and pole lights. These details connect the dock layout with its everyday use.
Project components
What went into the dock.
These are the components documented for this installation. Your project may need a different layout, support arrangement or combination of parts.
Products documented in the Beach Club and Grill project
Component
Part number
4′ × 10′ aluminum frame with gray ThruFlow decking
D1002
4′ × 12′ aluminum frame with gray ThruFlow decking
D1007
4′ × 4′ transition ramp with gray ThruFlow decking
D6033
Adjustable vertical bumper, black
D6080
Corner bumper, black
D6079
The documented project also includes custom gussets and pole lights.
A useful starting point for your site
Standard sections. Room for a custom detail.
Not every commercial project needs an entirely custom dock. Share your shoreline, dimensions and intended use so we can discuss where standard systems fit and where fabrication may be needed.
Bring these details to the first conversation.
The project city and state, and how the waterfront will be used
A shoreline photo or a rough plan showing the proposed dock
Boat sizes, desired slips and access requirements
Whether this is a replacement, expansion or new installation
